CHA-RT Series Waterproof Junction Box

Share Products:

Product Categories

Materials & Construction

Body made of durable ABS, with a PVC stopper for sealing. These materials provide high resistance to impact, heat, low temperatures, chemicals, as well as UV ➝ ideal for harsh environments . 🔹 Waterproofing & Dust Protection Design meets IP65 rating—fully dust-tight and protected against projected water jets. Achieves this via a secure rubber gasket and precision cable gland compatibility . 🔹 Cable Entry PVC stopper plates can be pierced or fitted with cable glands for water-tight cable entry. 🔹 Installation Options Internal holes for mounting circuit boards or DIN rails. External screw holes allow direct wall-mounting or attachment to any flat surface 🔹 Certifications & Applications Certified under CE, RoHS, CCC, and ISO9001 standards Suitable for indoor & outdoor use across industries: electrical, communication, fire safety, petrochemical, railway, mining, wastewater, environmental monitoring, maritime, and more.

Technical Parameters

Model Code	Outside Dimenstion(mm)			Hole Qty	Hole Size	G.Weight	N.Weight	Qty/Carton	Carton Dimenstion	IP
Model Code	L	W	H	Hole Qty	Hole Size	G.Weight	N.Weight	Qty/Carton	Carton Dimenstion	IP
CHA-RT 50×50		50	50	4	25	12.9	11.7	300	45.5×37.5×51	55
CHA-RT 80×50		80	50	4	25	13.1	11.8	240	53×35×62	55
CHA-RT 85×85×50	85	85	50	7	25	15.6	14.4	200	45×37×53	55
CHA-RT 100×100×70	100	100	70	7	25	14	12.5	100	57×46×35	65
CHA-RT 150×110×70	150	110	70	10	25	13.6	12.3	60	62×31.5×46.5	65
CHA-RT 150×150×70	150	150	70	8	25	14.4	12.9	60	79.5×31.5×46	65
CHA-RT 200×100×70	200	100	70	8	25	15.4	13.8	60	57×43×42	65
CHA-RT 200×155×80	200	155	80	10	36	13.6	11.9	40	64.5×40.5×41	65
CHA-RT 200×200×80	200	200	80	12	36	16	14.4	40	85×43×40.5	65
CHA-RT 255×200×80	255	200	80	12	36	20	18	40	51.8×41.2×79.2	65
CHA-RT 255×200×120	255	200	120	12	36	19.8	18	30	62×53×62	65
CHA-RT 300×250×120	300	250	120	12	36	19.7	17.8	20	61×52×61.5	65
CHA-RT 400×350×120	400	350	120	16	36	14.8	13.1	10	72×41×61.5	65

Welcome to our website. If you have any requests or suggestions,please feel free to email us at [email protected] or use the following enquiry form. Please allow us to provide you with the best service.

CHA-RT Series Waterproof Junction Box

Product Categories

Materials & Construction

Technical Parameters

Our Products

Other Related Products

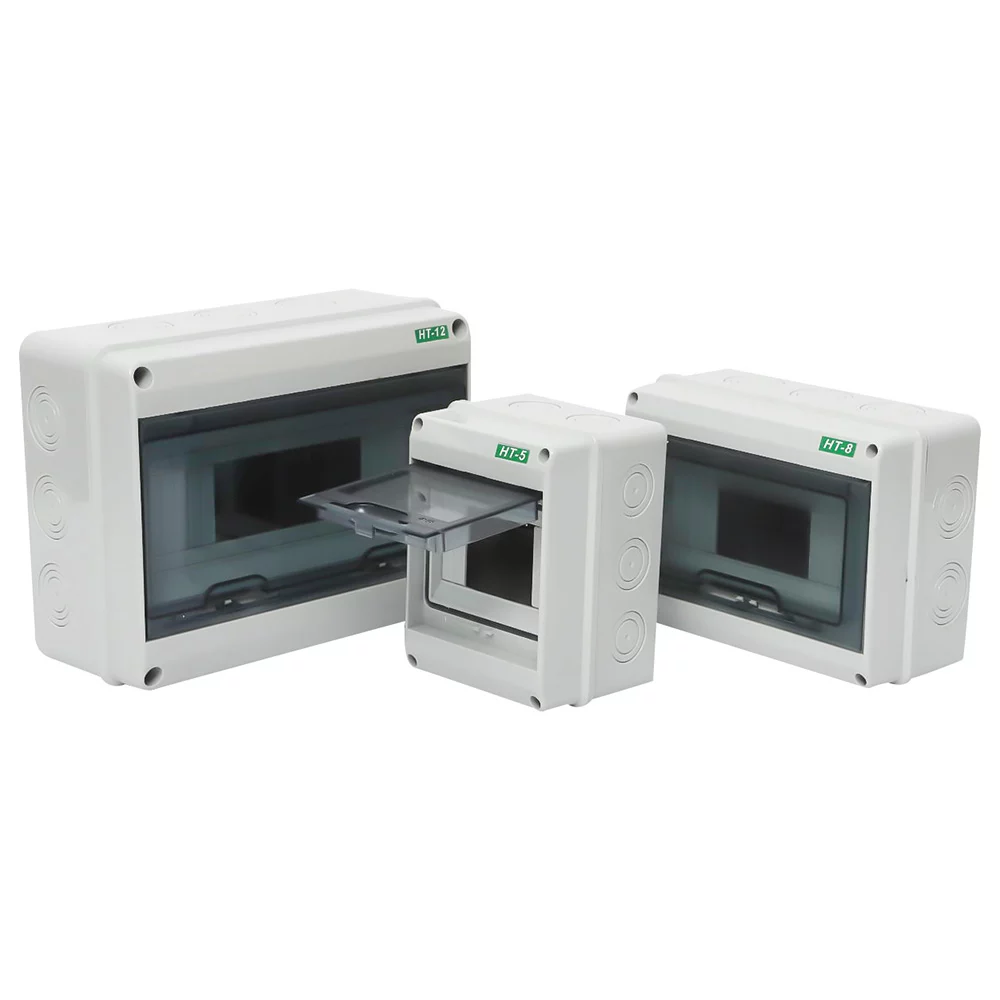

CHA-HT Series Pastic Distribution Box

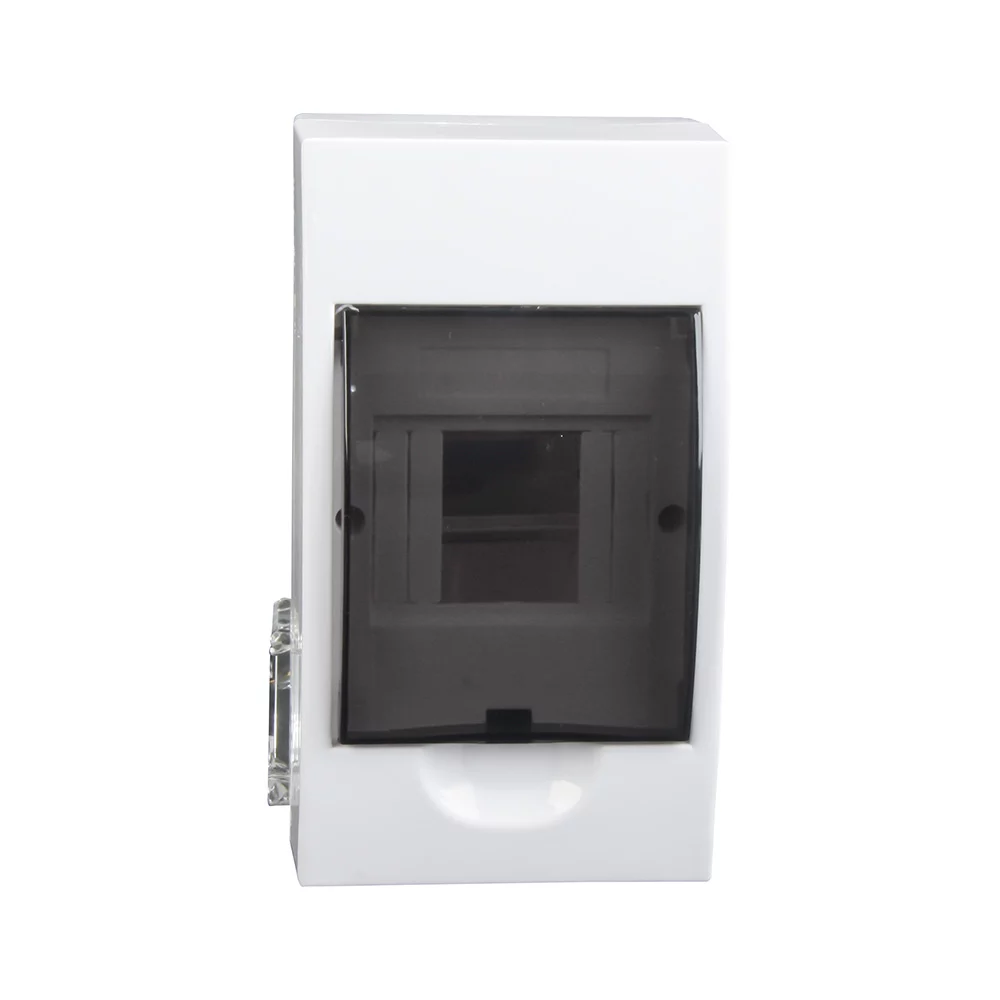

CHA-MS Series Pastic Distribution Box
