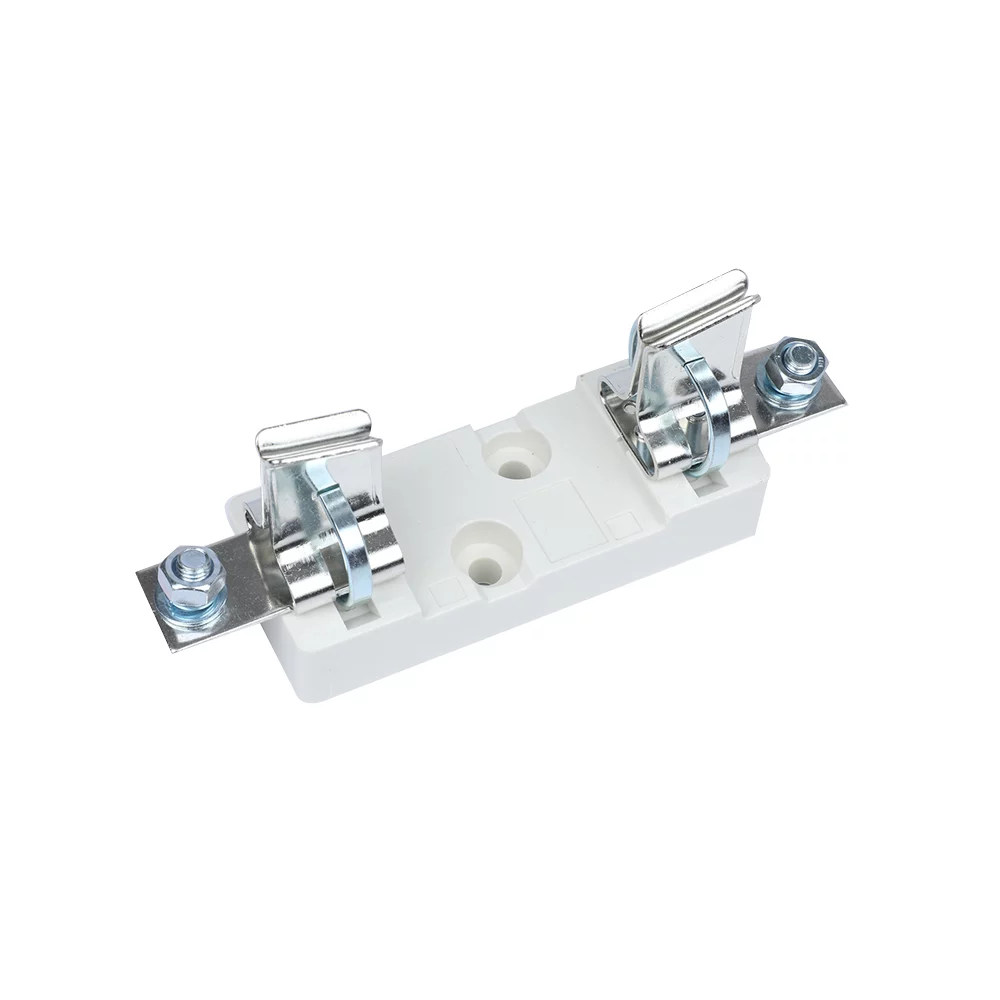

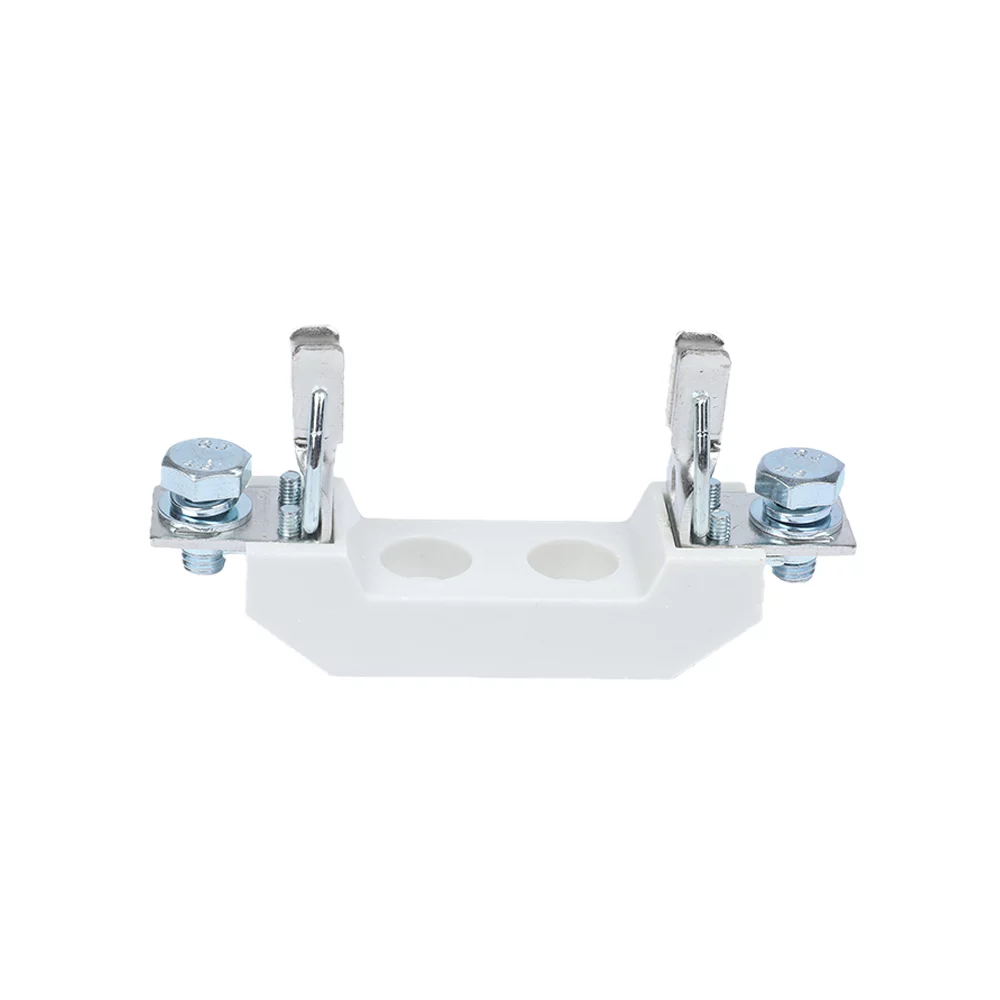

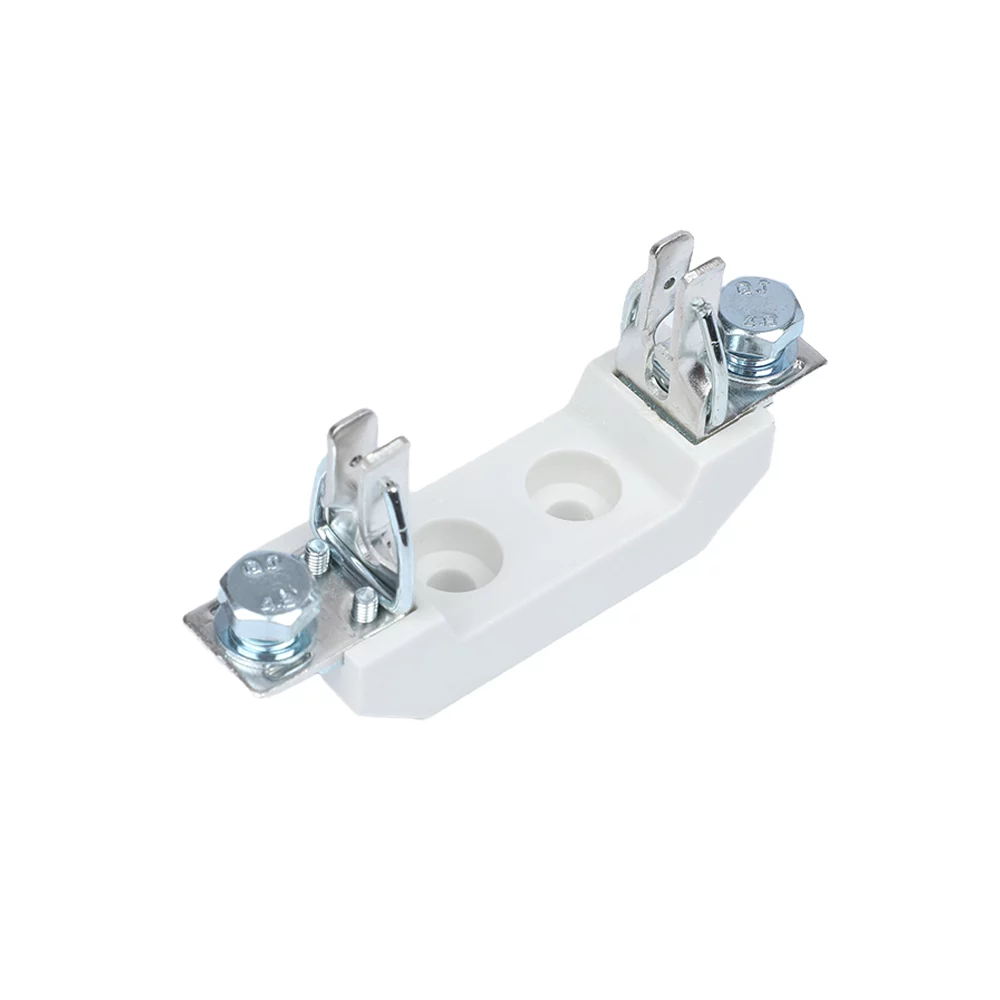

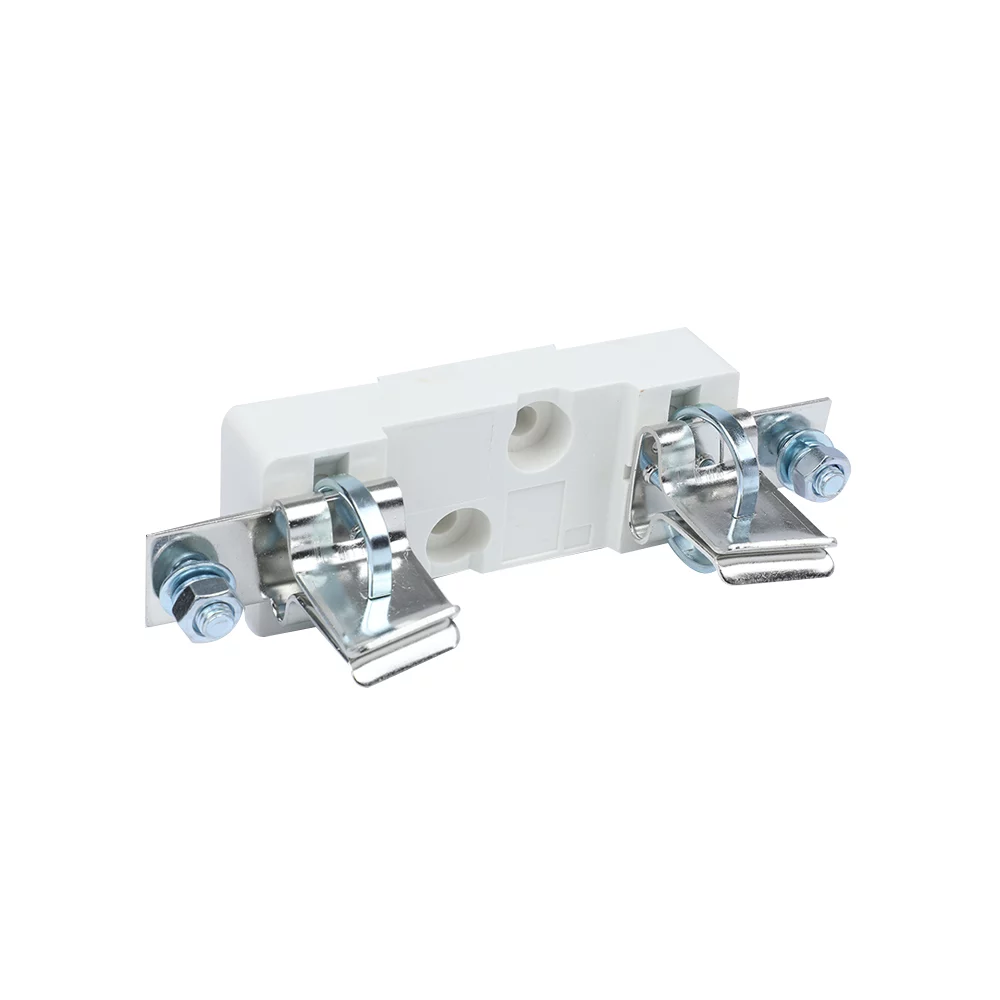

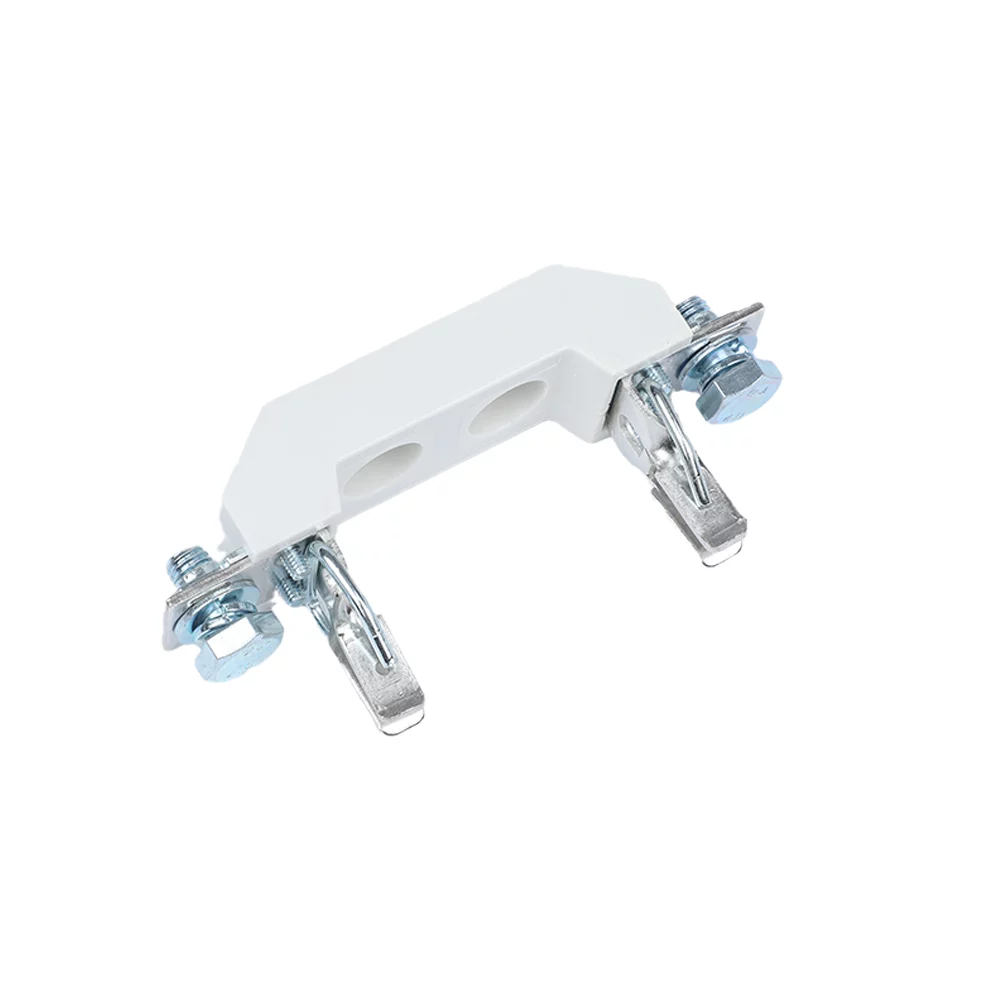

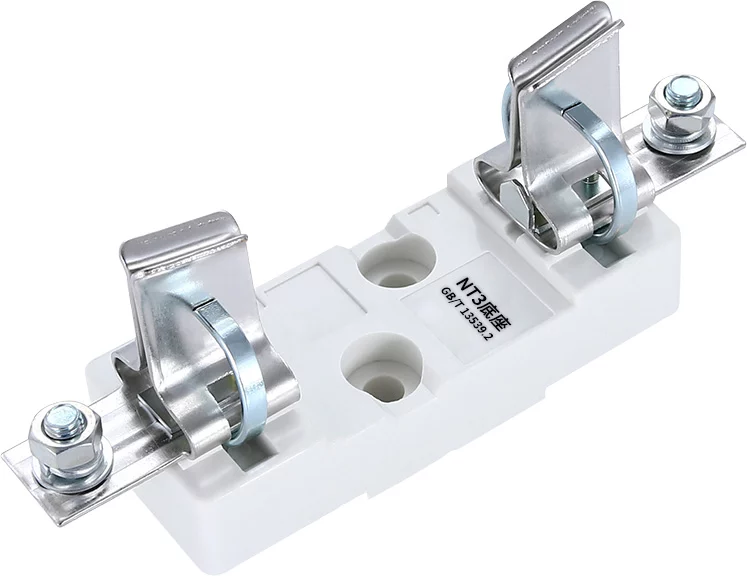

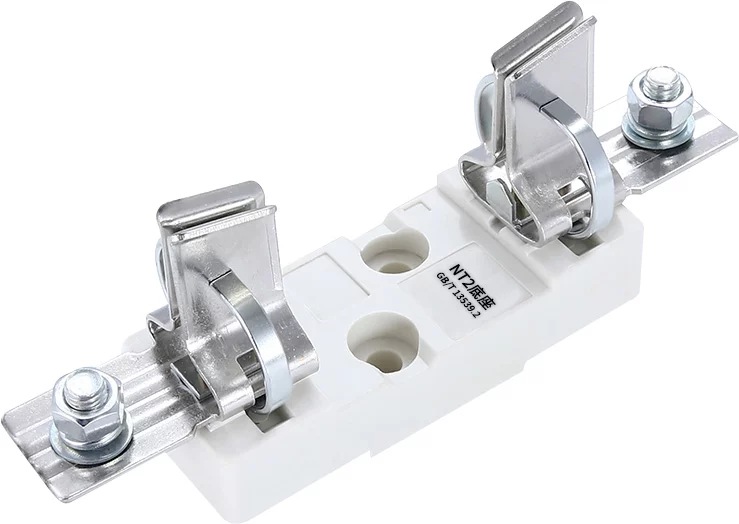

NTNH fuse base
NTNH fuse base
NTNH fuse base
NTNH fuse base
NTNH fuse base
NTNH fuse base
NTNH fuse base
NTNH fuse base
Categories:

NTNH Fuse Base

Get A Quote
Downloads

Share Products:

Facebook Twitter Youtube Linkedin

Product Categories

NT/NH series of fuse links are mainly used in electrical equipments for protecting the circuits against overload and short-circuit.lt also can protecting motor. They are suitable for the circuit of AC5oHz, rated voltage up to l14oV, rated current up to1250A. The breaking capacity of the fuse links is to 120KA. The fuse links conform to the standards of IEC269.

Technical parameters

Model size and specification of applicable fuse link Rated insulation voltage Rated current(A) Weight(g) Drawing No. Overall dimension
(mm)
A1 A2 A3 B1 B2 C1 C2 Фd
NT1/NH1 690 250 550 2.15 25 175 200 30 58 38 84 10.5
NT2/NH2 690 400 770 2.15 25 200 225 30 60 38 100 10.5
NT3/NH3 690 630 965 2.15 25 210 250 30 60 40 105 10.5

NTNH series fuse base drawing

Welcome to our website. If you have any requests or suggestions,please feel free to email us at  [email protected] or use the following enquiry form. Please allow us to provide you with the best service.

Our Products

Other Related Products

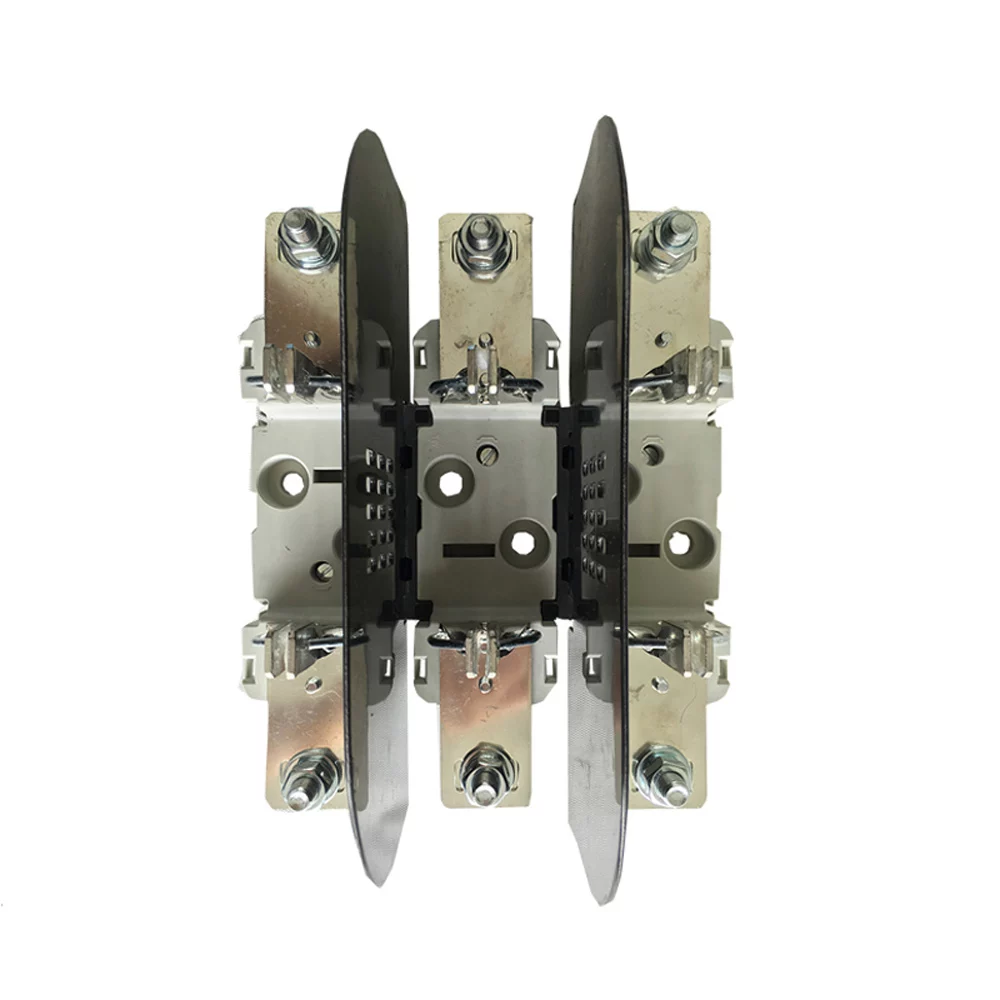

BH series DIN rail fuse base

BH Series DIN Rail Fuse Base

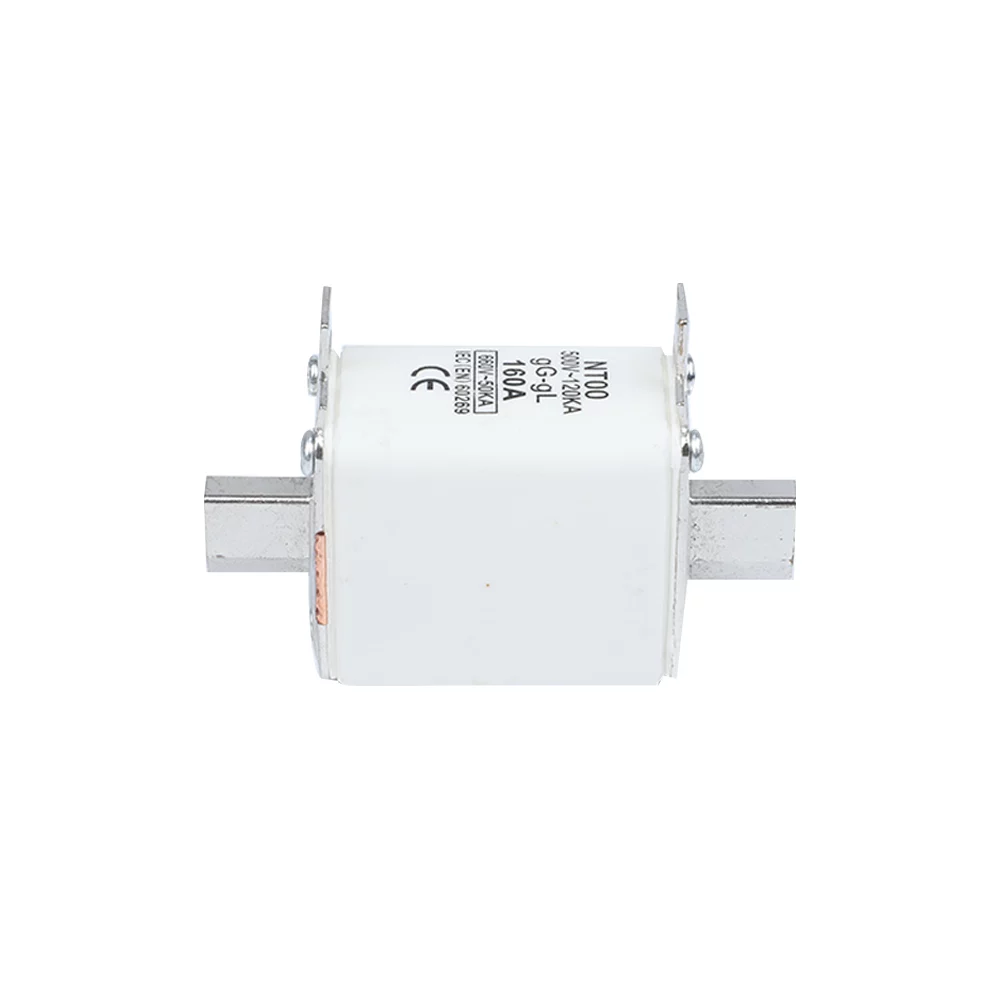

NTNH series fuse
