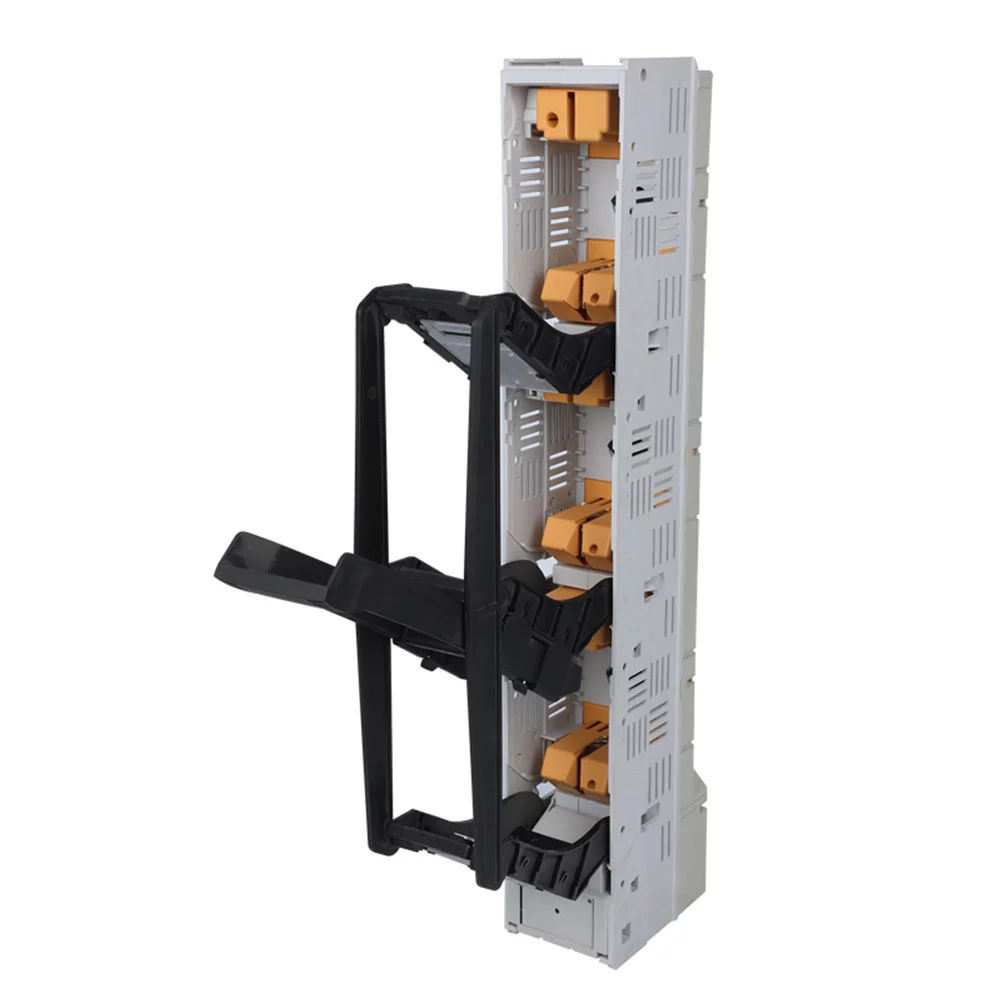

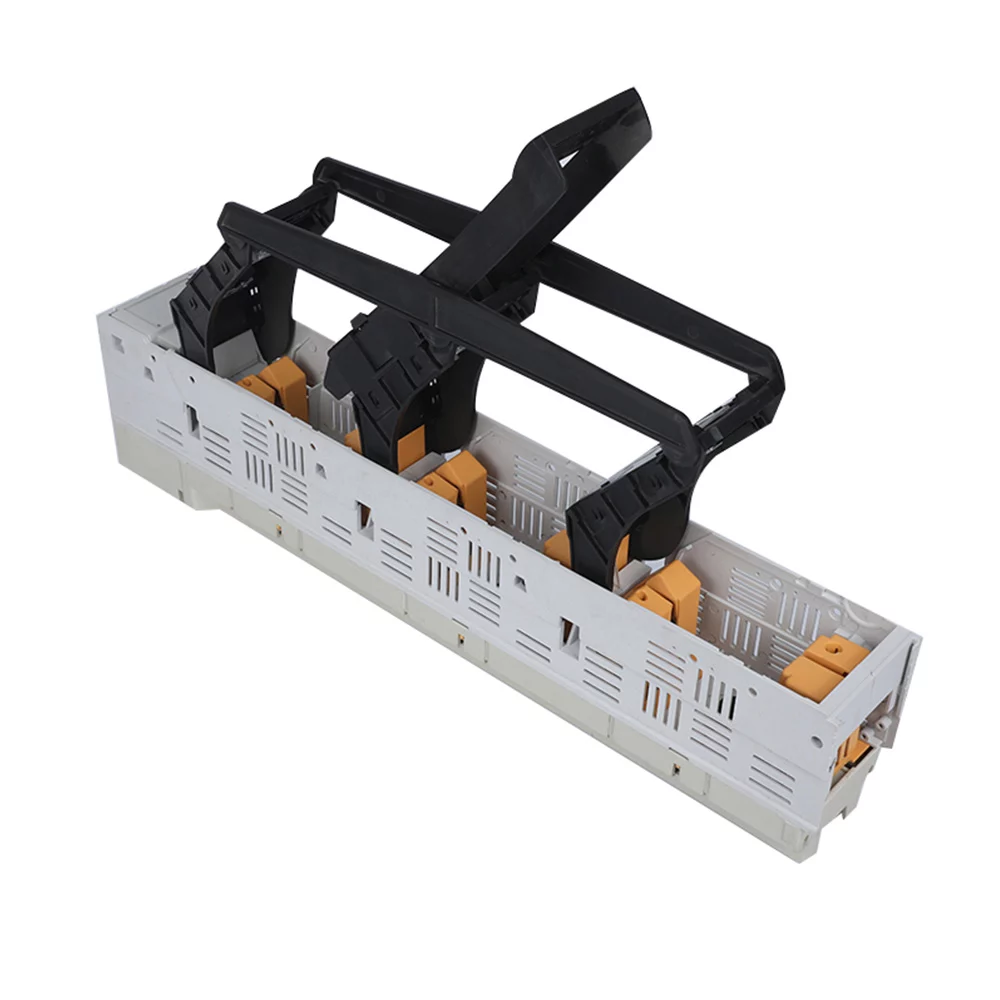

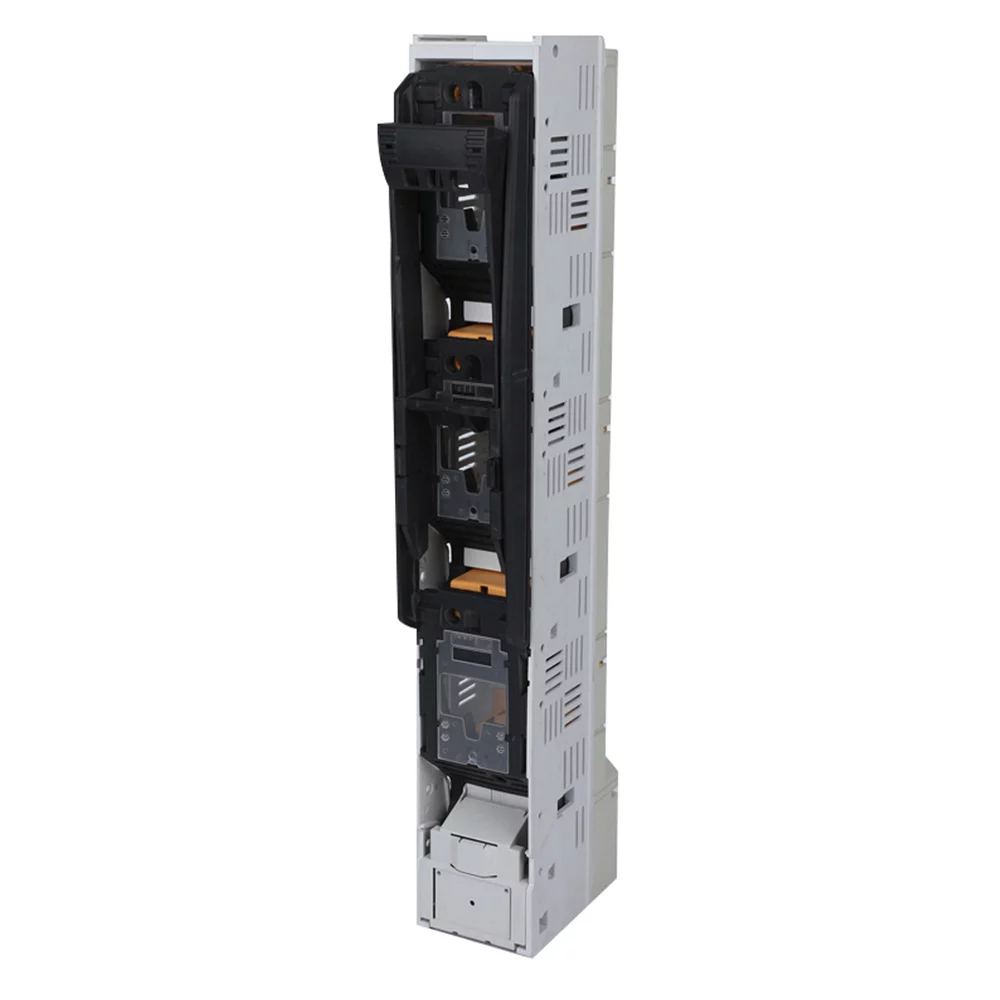

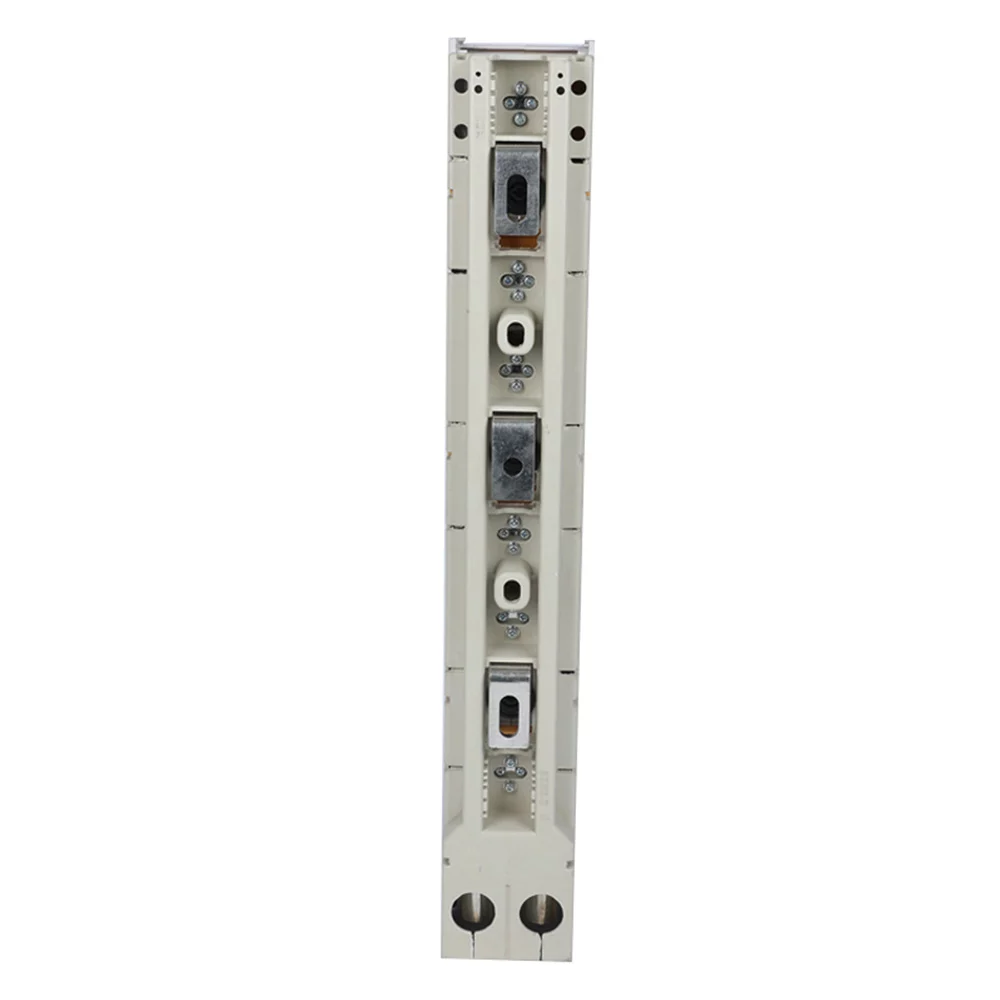

BTR series strip type fuse switch disconnector
BTR series strip type fuse switch disconnector
BTR series strip type fuse switch disconnector
BTR series strip type fuse switch disconnector
BTR series strip type fuse switch disconnector
Categories:

BTR4 Series Strip Type Fuse Switch Disconnector

Get A Quote
Downloads

Share Products:

Facebook Twitter Youtube Linkedin

Product Categories

  • Conjoined type can be a three-phase closed off simultaneously.
  • Operation safely. while fuse installed in the handle and it can be used as a contact blade directly.
  • It is beautiful and practical and the whole switch can be disassemblyed easily. and installed in the cabinet fastly.
  • Wiring reduced make it easy to increase the loop and the utilization of the cabinet.
  • The resin glass fiber base (BMC-UP(GF15 ). FR/DMC-2).with flame retardant grade. and the enclosure rating up to IP30.
  • The latest product has highest usage in the market.
  • The instantaneous breaking force is up to 100kA. and the operating capacity with a load can be up to 1.3 times of the rated current.
  • It can be with the fuse monitor. signal switch and a remote control module.

Certificate

BTR series strip type fuse switch disconnector certificate BTR series strip type fuse switch disconnector certificate

Technical Parameter

Type of Fuse Switch BTR4-160 BTR4-250 BTR4-400 BTR4-630
Ue 415V 500V 690V 415V 500V 690V 415V 500V 690V 415V 500V 690V
Ith 160A 250A 400A 630A
Frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Ui 1000V 1000V 1000V 1000V
Uimp 10kV 12kV 12kV 12kV
Application category 415V 500V 690V 415V 500V 690V 415V 500V 690V 415V 500V 690V
AC23B AC22B AC21B AC23B AC22B AC21B AC23B AC22B AC21B AC23B AC22B AC21B
Degree Of Protection IP30 IP30 IP30 IP30
Electrical endurance life (s) 200 200 200 200
Mechanical endurance life (times) 1500 1500 800 800 1500 800
Fuse Size 00 1 2 3
Fuse operating current 160A 125A 100A 250A 250A 200A 400A 400A 315A 630A 630A 500A
Power loss 12W 12W 12W 18W 23W 32W 28W 34W 45W 40W 48W 60W
Electronic Fuse Monitor (EFM) availabe
Signal feedback for
opening and closing the
switch (micro switch)		 availabe
Ue 415V 500V 690V 415V 500V 690V 415V 500V 690V 415V 500V 690V
le 160A 125A 100A 250A 250A 200A 400A 400A 315A 630A 630A 500A
Wire Specifications   95mm²        120mm² 240mm² 300mm²
General Connection
Mode		   Screw&Cable lug   Screw&Cable lug Screw&Cable lug Screw&Cable lug
The Special Connection
Mode		 V-clamp
Installation of Busbar Punched rectangle busbar Punched rectangle busbar Unpunched rectangle
busbar		 Other
Fixed Way Screw Screw Hook Other custom accessories

BTR series strip type fuse switch disconnector Installation Dimensions

BTR series strip type fuse switch disconnector Drawing
