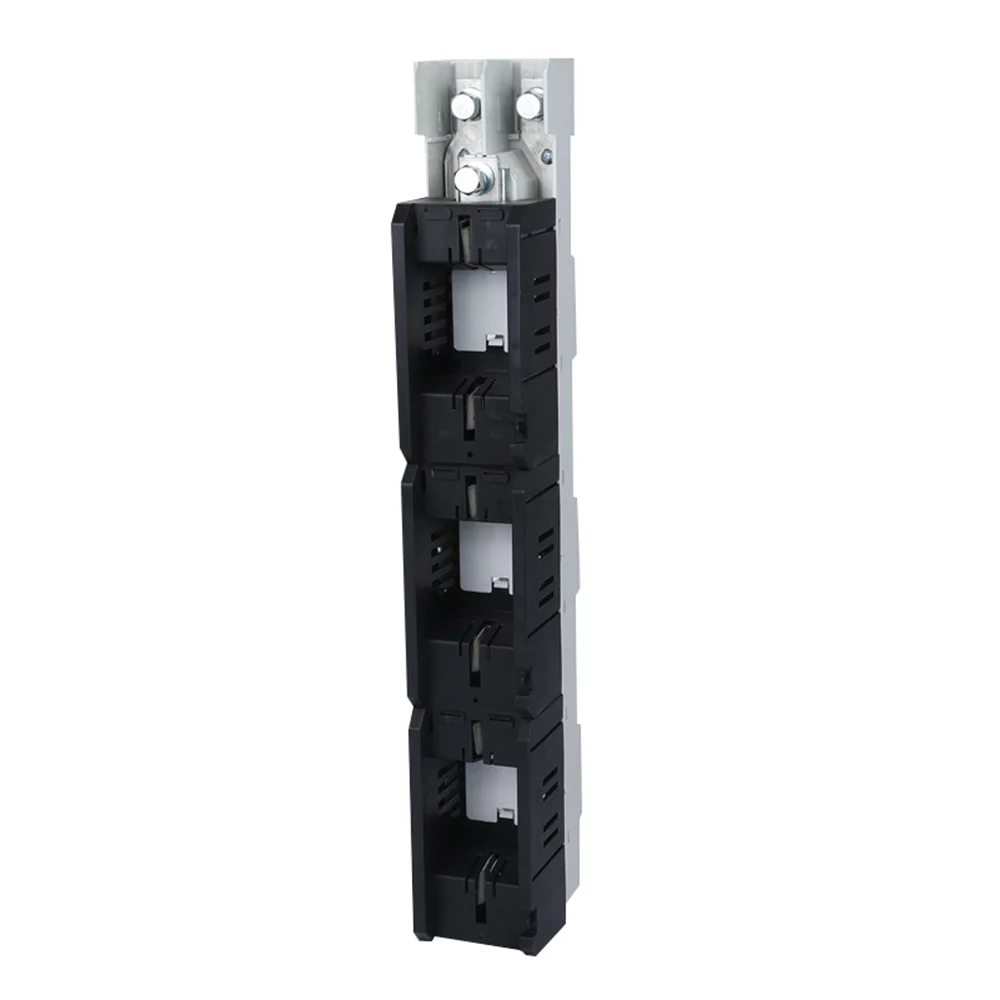

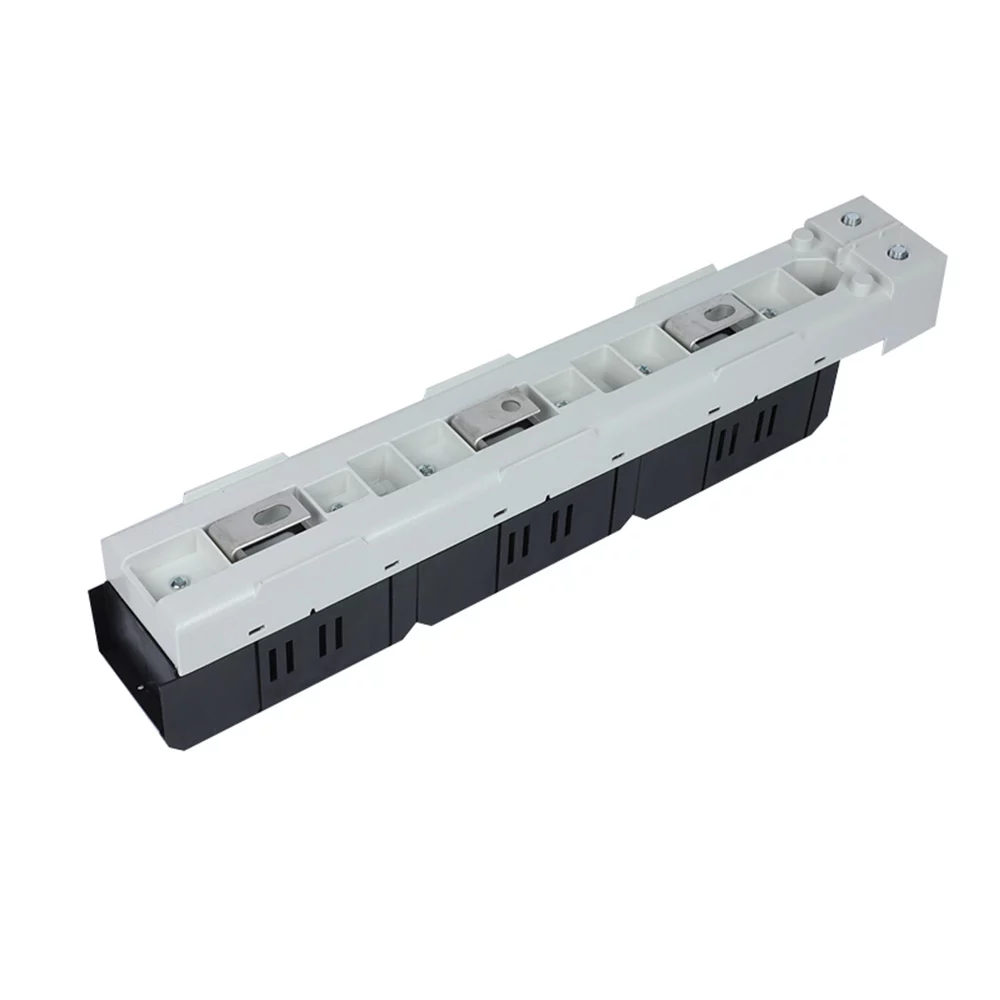

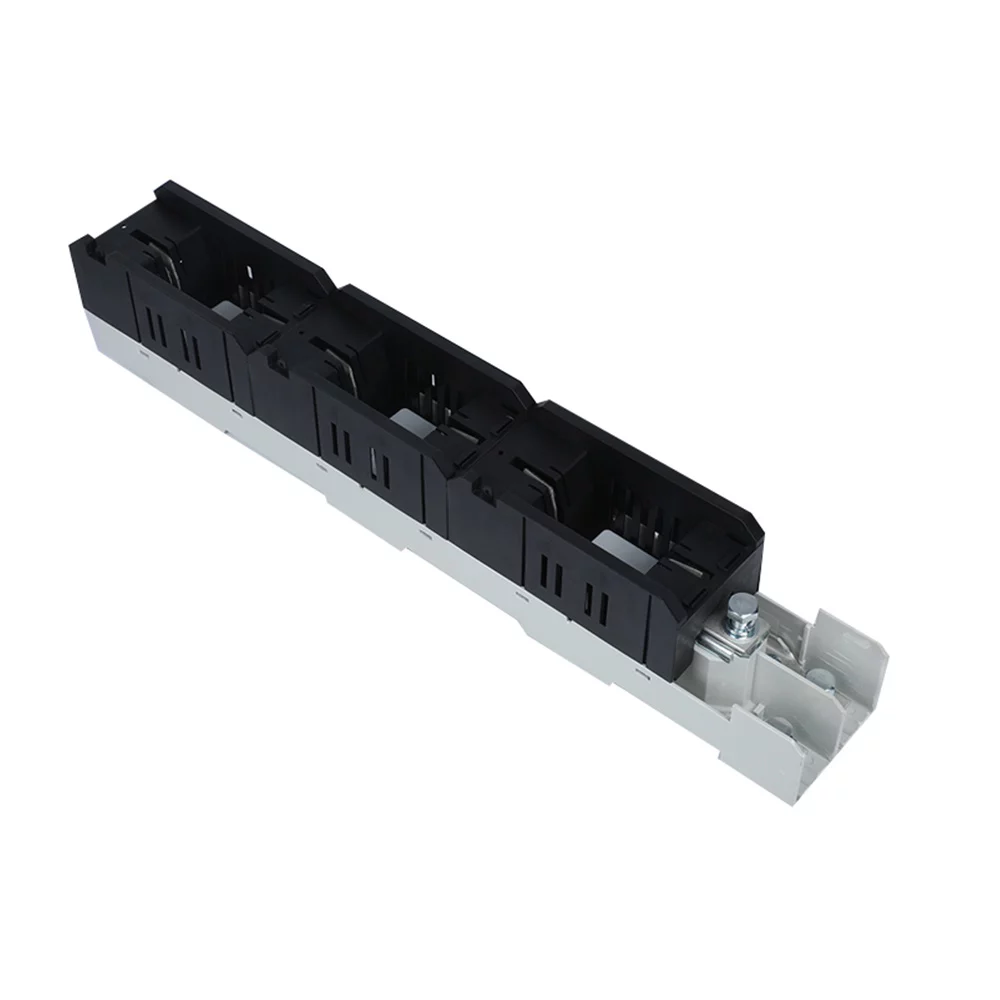

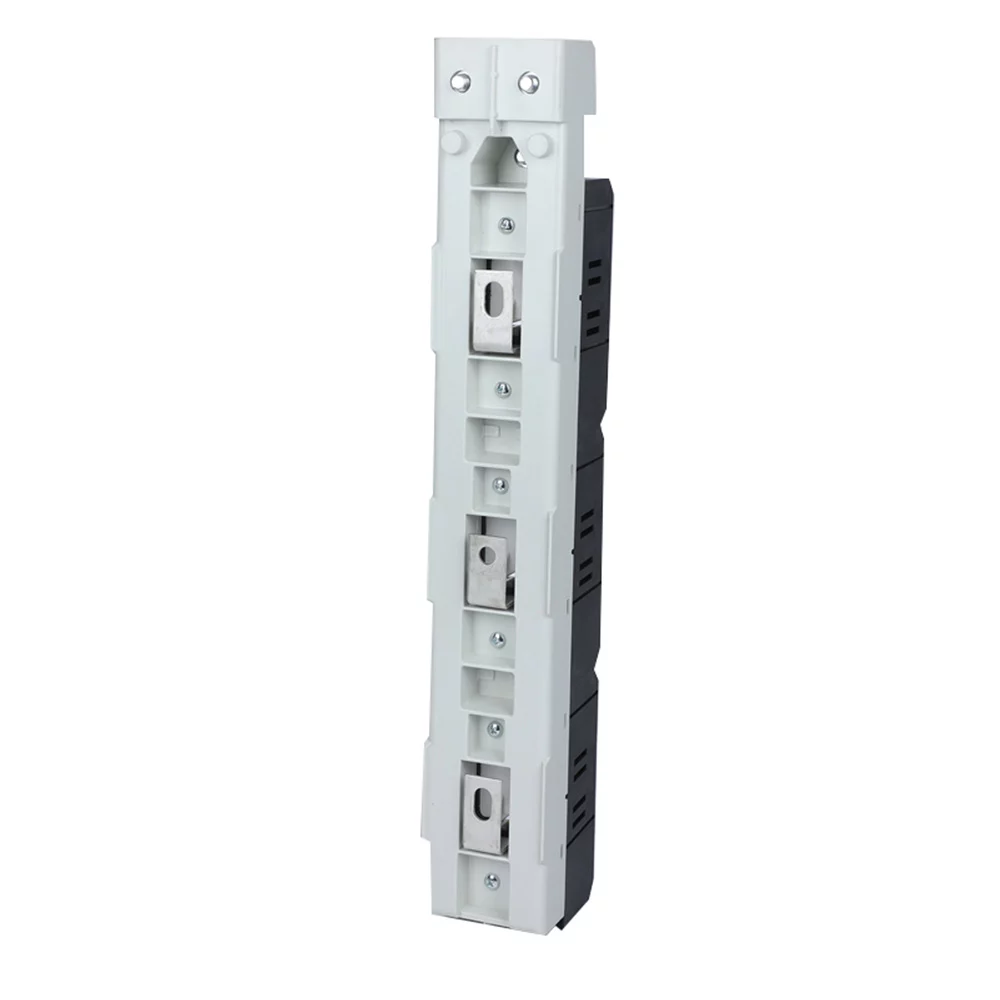

BTR series fuse rail
BTR series fuse rail
BTR series fuse rail
BTR series fuse rail
BTR series fuse rail
BTR series fuse rail
Categories:

BTR5 Series Fuse Rail

Get A Quote
Downloads

Share Products:

Facebook Twitter Youtube Linkedin

Product Categories

  • Conjoined type can be a three-phase closed off simultaneously.
  • Operation safely. while fuse installed in the handle and it can be used as a contact blade directly.
  • It is beautiful and practical and the whole switch can be disassemblyed easily. and installed in the cabinet fastly.
  • Wiring reduced make it easy to increase the loop and the utilization of the cabinet.
  • The resin glass fiber base (BMC-UP(GF15 ). FR/DMC-2).with flame retardant grade. and the enclosure rating up to IP30.
  • The latest product has highest usage in the market.
  • The instantaneous breaking force is up to 100kA. and the operating capacity with a load can be up to 1.3 times of the rated current.
  • It can be with the fuse monitor. signal switch and a remote control module.

Technical Parameter

Type of Fuse Switch BTR5-250 BTR5-400 BTR5-630
Ue 415,500,690V
Ith 250A 400A 630A
Frequency 50/60Hz 50/60Hz 50/60Hz
Ui 1000V 1000V 1000V
Uimp 10KV 10KV 10KV
Application category 415V 500V 690V 415V 500V 690V 415V 500V 690V
AC23B AC22B AC21B AC23B AC22B AC21B AC23B AC22B AC21B
Degree Of Protection IP30 IP30 IP30
Fuse Size 1 2 3
Ue 415V 500V 690V 415V 500V 690V 415V 500V 690V
le 250A 250A 250A 400A 400A 350A 630A 630A 500A
Wire Specifications 120mm2 240mm2 300mm2
General Connection
Mode		 Screw&Cable lug
The Special Connecuon
Mode		 V-clamp
Installation of Busbar 1.Punched rectangle busbar 2.Unpunched rectangle busbar 3.Other
Fixed Way 1.Screw2.Hook3.Other custom accessories

BTR series fuse rail Installation Dimensions
