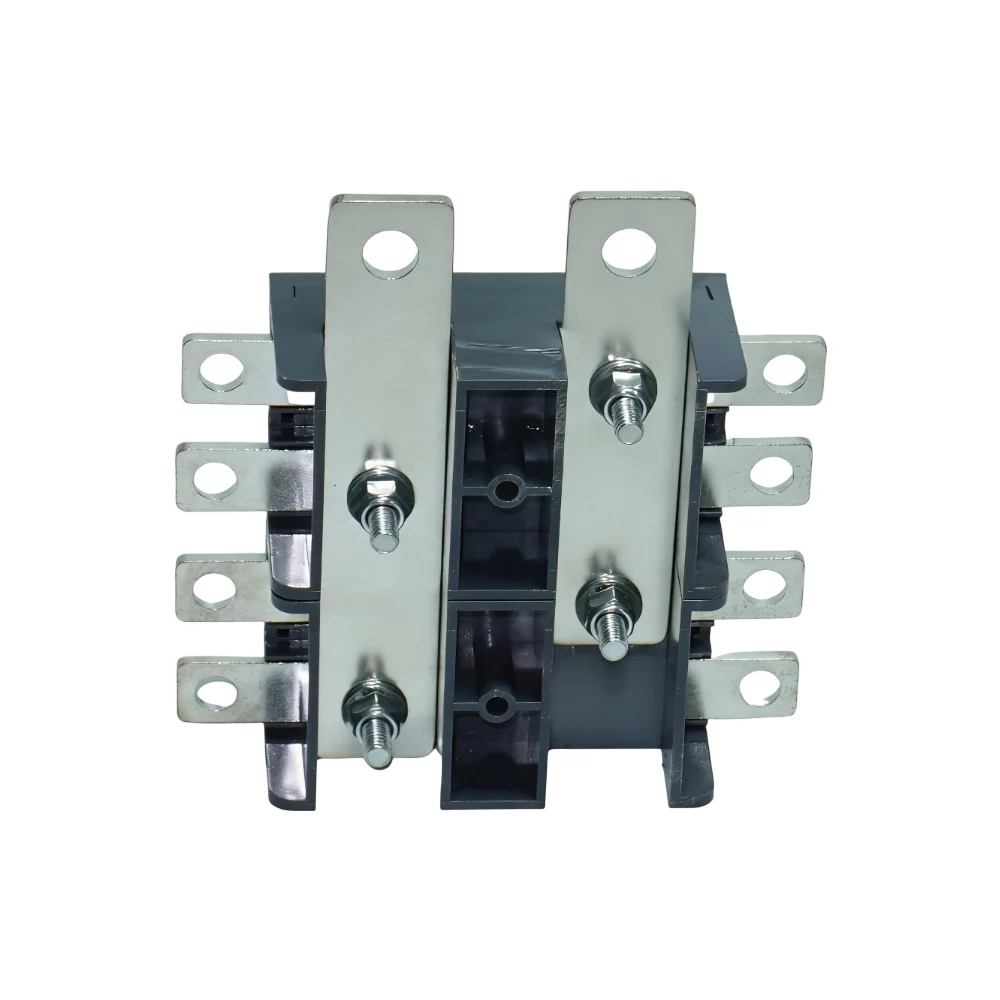

BP MCCB Pan Assembly
Categories:

BP5 MCCB Pan Assembly

Get A Quote
Downloads

Share Products:

Facebook Twitter Youtube Linkedin

Product Categories

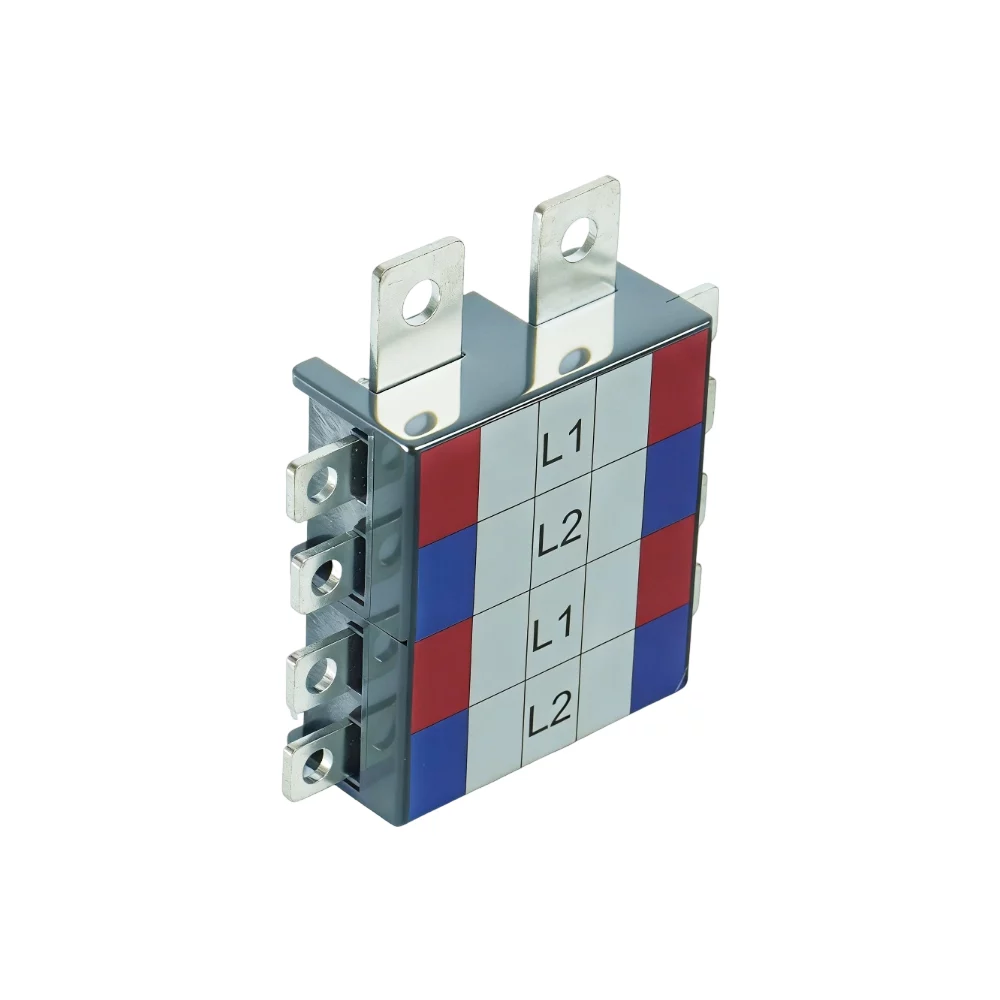

With phase label for clear wiring Compatible with major MCCB brands Insulated design with screw terminals Ideal for AC and DC busbar distribution Quick installation through pre-drilled holes in accordance with IEC61439/2020 series standards: Ensures safe and efficient operation in commercial and industrial environments.

Rated:

Incoming: 125A (T 4mm), 250A (T 6mm) 400A (T 10mm) Outgoings: 63A (T 2mm) 125A (T 3mm)

Product Description:

DP MCCB pan assembly could be used for branch DP MCCB which pole distance 25mm,width 50mm With phase label for clear wiring Compatible with major MCCB brands Insulated design with screw terminals Ideal for AC and DC busbar distribution Quick installation through pre-drilled holes in accordance with IEC61439/2020 series standards: Ensures safe and efficient operation in commercial and industrial environments.

Technical parameters

Model Outgoing terminal Wide(mm) Incoming terminal Wide(mm) Outline Size(mm)
BP5-2W 15mm 25mm 81*128*43.5
BP5-4W 15mm 25mm 132*128*43.5
BP5-6W 15mm 25mm 183*128*43.5
BP5-8W 15mm 25mm 234*128*43.5
BP5-10W 15mm 25mm 285*128*43.5
BP5-12W 15mm 25mm 336*128*43.5
BP5-14W 15mm 25mm 387*128*43.5
BP5-16W 15mm 25mm 438*128*43.5
BP5-18W 15mm 25mm 489*128*43.5
BP5-20W 15mm 25mm 540*128*43.5
BP5-22W 15mm 25mm 591*128*43.5
BP5-24W 15mm 25mm 642*128*43.5
BP5-26W 15mm 25mm 963*128*43.5
BP5-28W 15mm 25mm 744*128*43.5
BP5-30W 15mm 25mm 795*128*43.5
BP5-32W 15mm 25mm 846*128*43.5
BP5-34W 15mm 25mm 897*128*43.5
BP5-36W 15mm 25mm 948*128*43.5
BP5-38W 15mm 25mm 999*128*43.5
BP5-40W 15mm 25mm 1050*128*43.5
