CHA MF WAYS

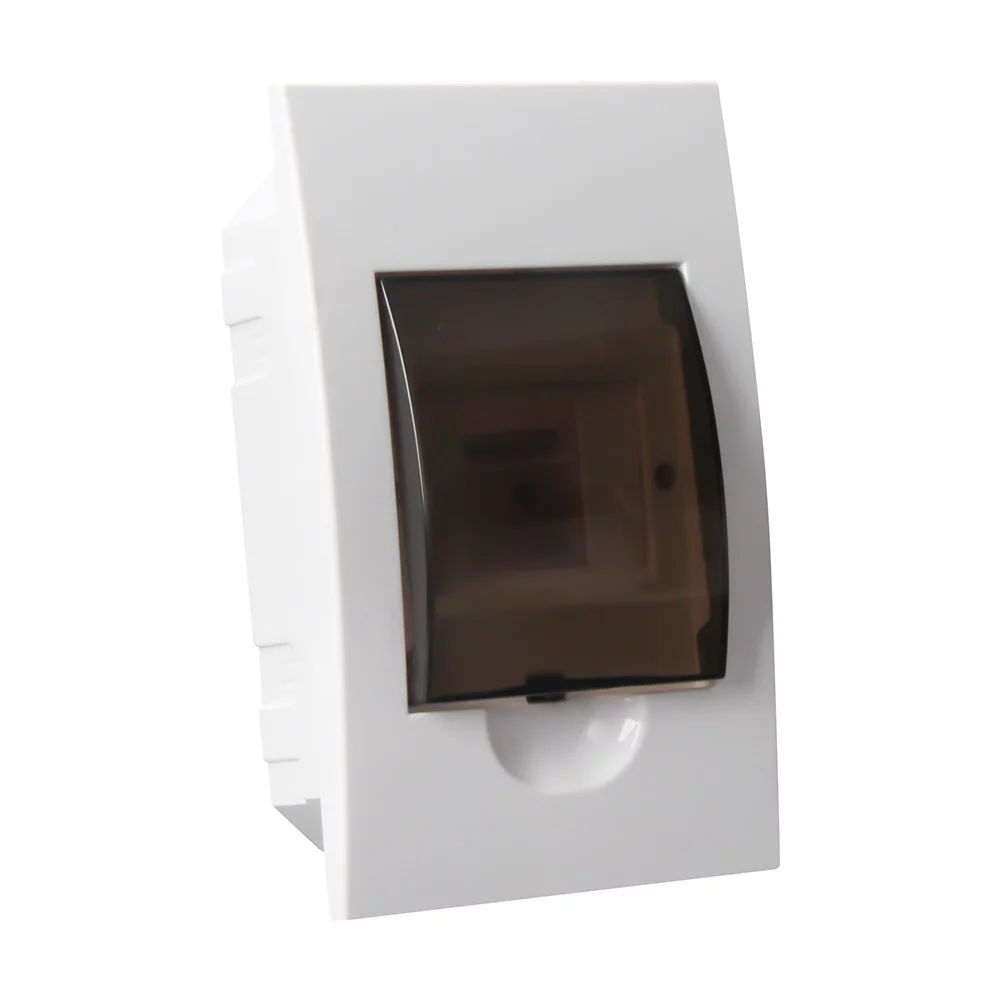

CHA MF series pastic distribution box

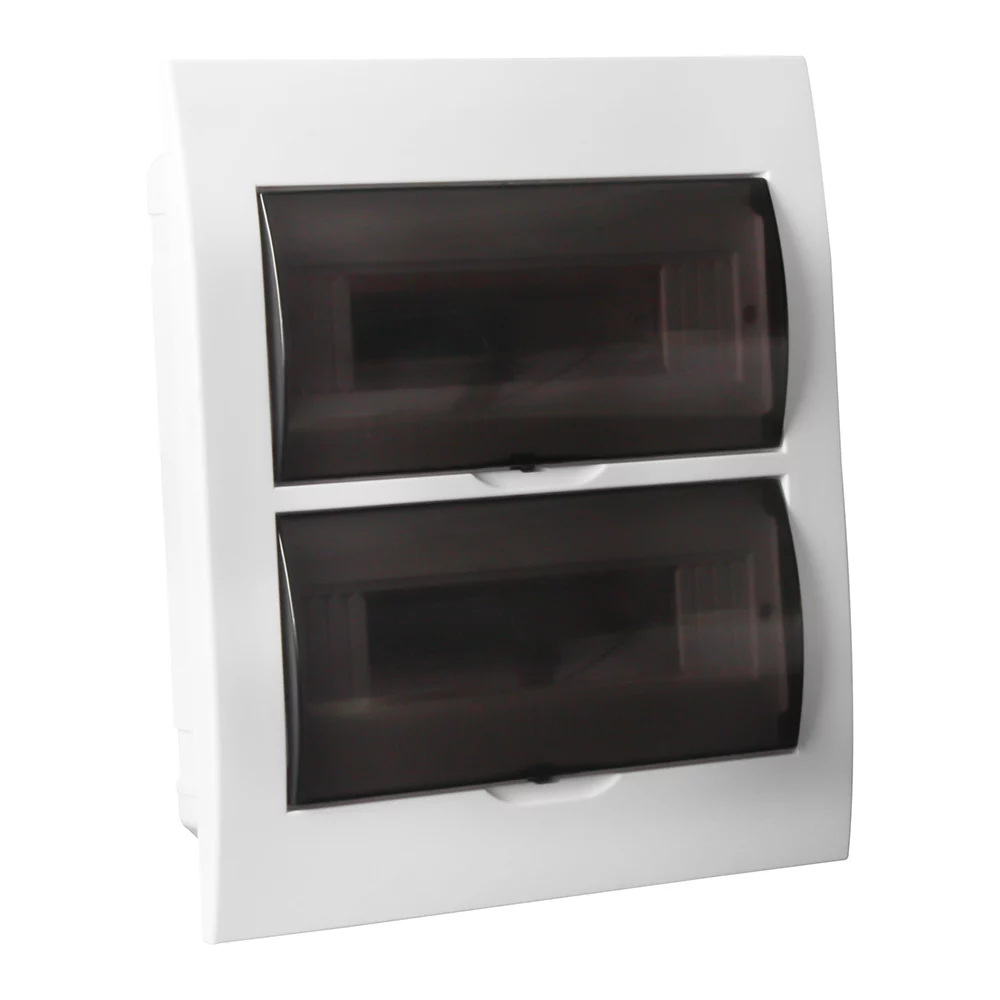

CHA MF series pastic distribution box

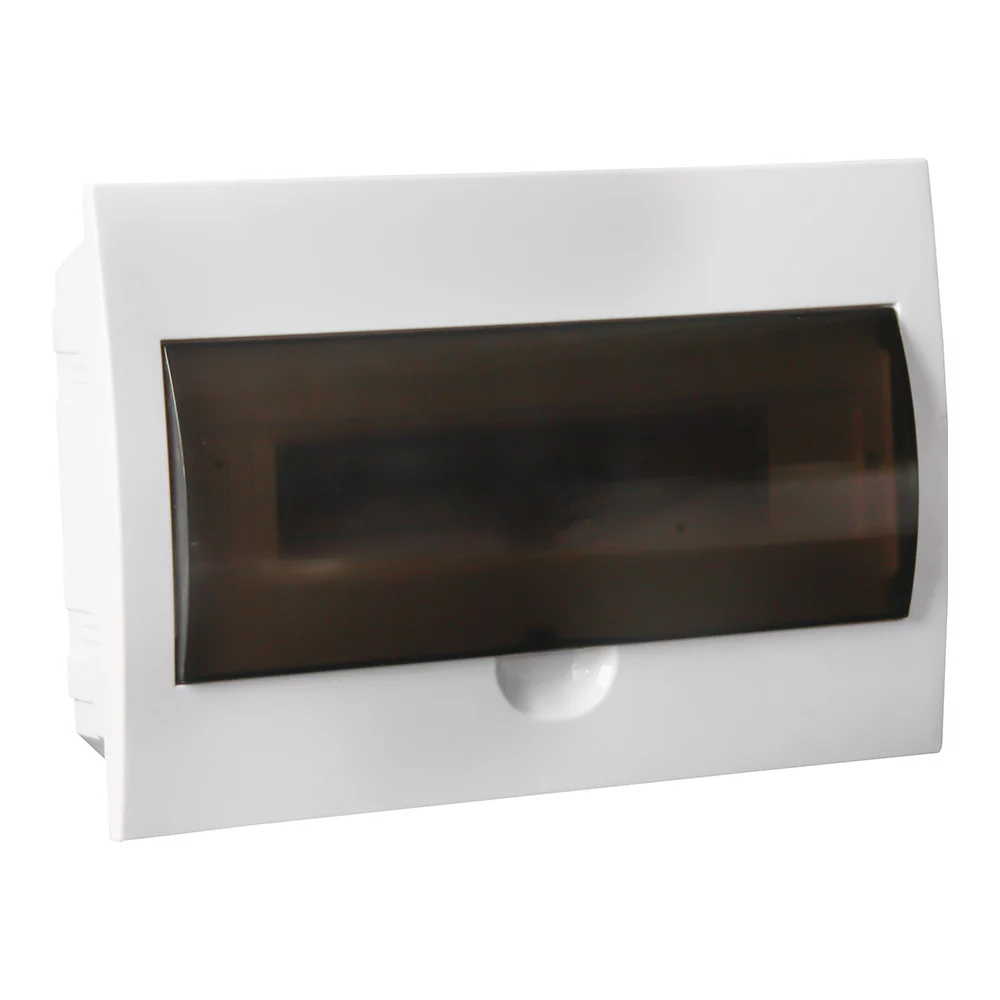

CHA MF series pastic distribution box
Categories:

CHA-MF Series Pastic Distribution Box

Get A Quote
Downloads

Share Products:

Facebook Twitter Youtube Linkedin

Product Categories

  • Body material: ABS
  • Transparent door: PC
  • Earth/Natural bars:Brass
  • Material characteristics: Impact, heat, low temperature and chemical resistance excellent electrical performance and surface gloss etc.
  • Certificates: CE,ROHS
  • Protection grade: IP50
  • Application: Suitable for indoor and outdoor electric, communication, fire fighting apparatus, iron and steel smelting, petrochemical industry, electron, power system, railway, building, mine, air and sea port, hotel, ship, works, waste water treatment equipment, environmental equipment and so on.
  • Installation: 1.lnside: There are din rail inside for din-rail type circuit breakers, earth bar and neutral bar for cable connection. Outside: The products can be directly fixed in the wall with screws or nails via the screw holes in the base.
  •  Outlet hole: The plastic plate in the hole can be knocked off for cables.

Technical Parameters

Model Code Outside Dimenstion(mm) G.Weight N.Weight Qty/Carton Carton Dimenstion
L1 W1 H1 L W H
CHA-MF 4WAYS 115 197 60 136 222 27 12.4 8.7 30 52.5×43×47
CHA-MF 6WAYS 148 197 60 170 222 27 14.9 11.1 30 48.5×47.5×54
CHA-MF 8WAYS 184 197 60 207 222 27 17.7 13.2 30 64×52.5×48.5
CHA-MF 10WAYS 222 197 60 243 222 27 13.2 9.8 20 51×47.5×48.5
CHA-MF 12WAYS 258 197 60 279 222 27 14.7 11 20 47.5×45×60.5
CHA-MF 15WAYS 310 197 60 334 222 27 12.3 9.3 15 49.5×35.5×71
CHA-MF 18WAYS 365 219 67 398 251 27 16.6 12.9 15 57×42×78
CHA-MF 24WAYS 258 310 66 300 345 27 13 10 10 57×36.5×63
CHA-MF 36WAYS 258 449 66 300 484 27 18.1 14.2 5 54×31.5×50.2

CHA MF series pastic distribution box drawing
