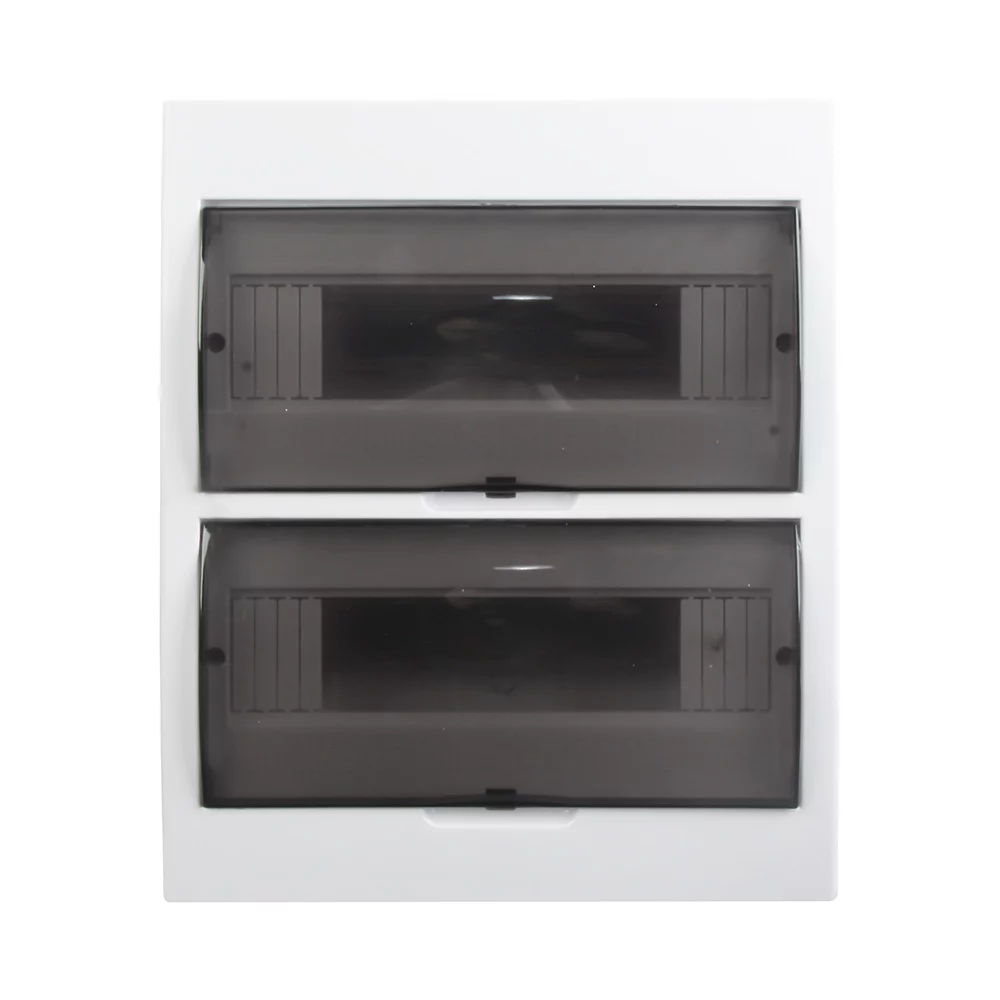

CHA MS series pastic distribution box
CHA MS series pastic distribution box
CHA MS series pastic distribution box
Categories:

CHA-MS Series Pastic Distribution Box

Get A Quote
Downloads

Share Products:

Facebook Twitter Youtube Linkedin

Product Categories

  • Body material: ABS
  • Transparent door: PC
  • Earth/Natural bars: Brass
  • Material characteristics: Impact, heat, low temperature and chemical resistance excellent electrical performance and surface gloss etc.
  • Certificates: CE, ROHS
  • Protection grade: IP50
  • Application: Suitable for indoor and outdoor electric, communication, fire fighting apparatus, iron and steel smelting, petrochemical industry, electron, power system, railway, building, mine, air and sea port, hotel, ship, works, waste water treatment equipment, environmental equipment and so on.
  • Installation: 1.lnside: There are din rail inside for din-rail type circuit breakers, earth bar and neutral bar for cable connection.
  • Outside: The products can be directly fixed on the wall or other flat boards with screws or nails via the screw holes in the base.
  • Outlet hole: The plastic plate in the hole can be knocked off for cables.

Technical Parameters

Model Code Outside Dimenstion(mm) G.Weight N.Weight Qty/Carton Carton Dimenstion
L W H
CHA-MS 4WAYS 112 200 95 11.5 8.7 30 51×36×42.5
CHA-MS 6WAYS 148 200 95 14.9 11.5 30 51×42.5×48.5
CHA-MS 8WAYS 184 200 95 16.7 12.8 30 52×42.5×58.5
CHA-MS 10WAYS 222 200 95 13 9.8 20 51×43×47.5
CHA-MS 12WAYS 256 200 95 14.8 11.5 20 51×43×54
CHA-MS 15WAYS 310 200 95 12.8 9.9 15 51×33×63.5
CHA-MS 18WAYS 365 222 95 15.2 12.8 15 52.5×38×70
CHA-MS 24WAYS 271 325 97 13.2 10.3 10 53.5×34×56.5
CHA-MS 36WAYS 271 462 100 18.5 14.8 5 54.5×28.5×48

CHA MS series pastic distribution box drawing
