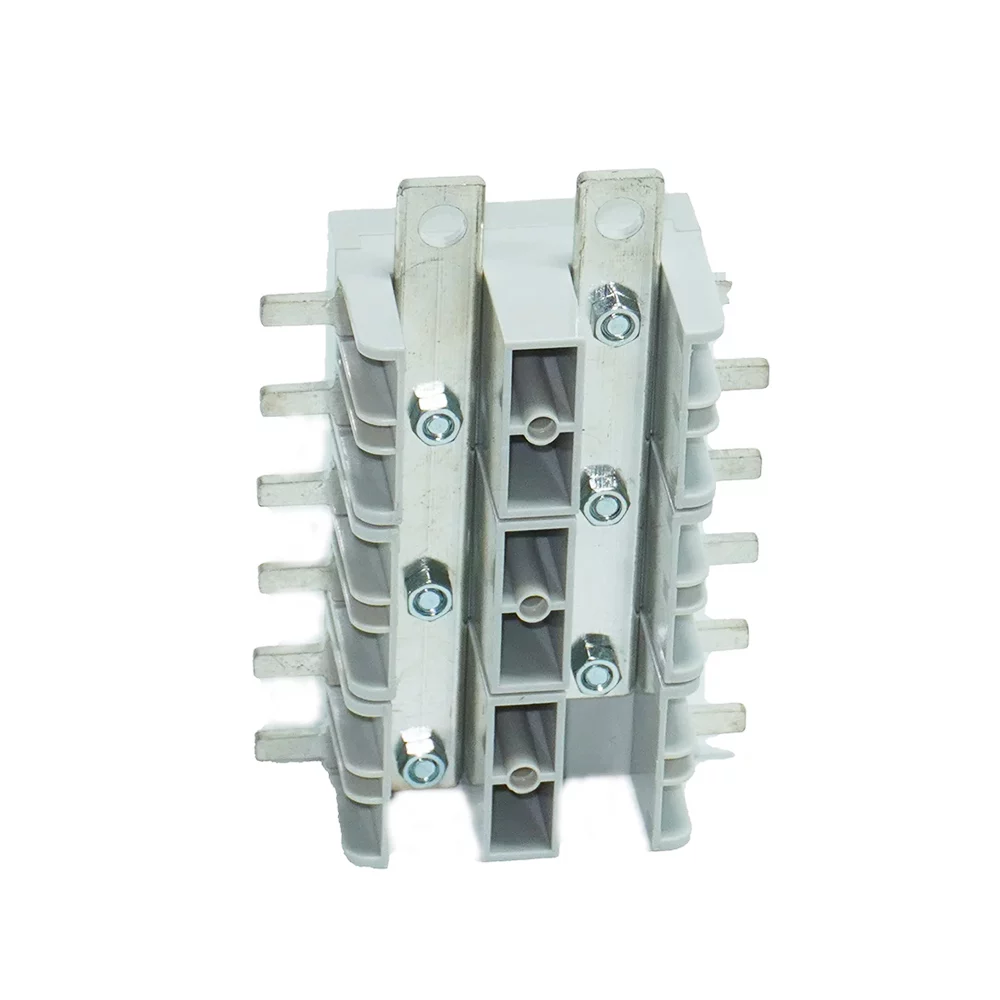

BP MCB pan assembly
bp mcb pan assembly
bp mcb pan assembly
bp mcb pan assembly
Categories:

BP2 MCB Pan Assembly

Get A Quote
Downloads

Share Products:

Facebook Twitter Youtube Linkedin

Product Categories

Product Deseription:

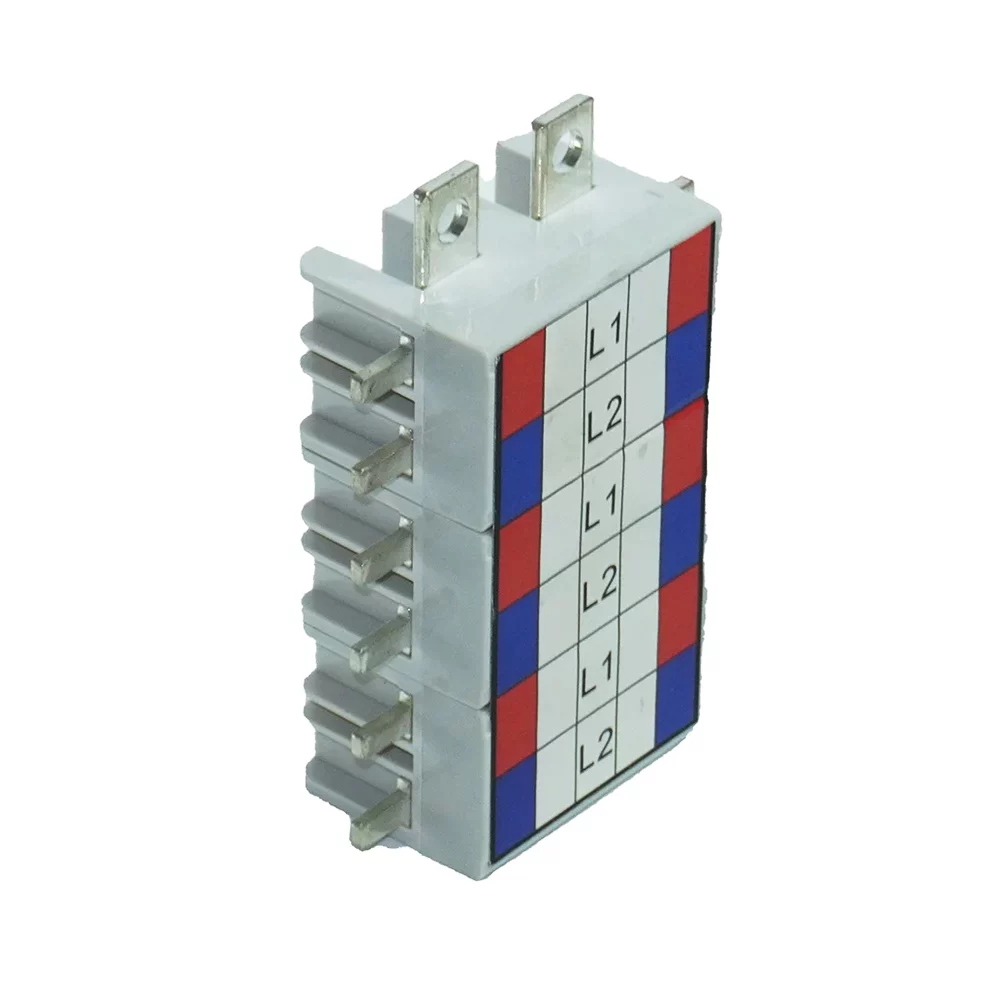

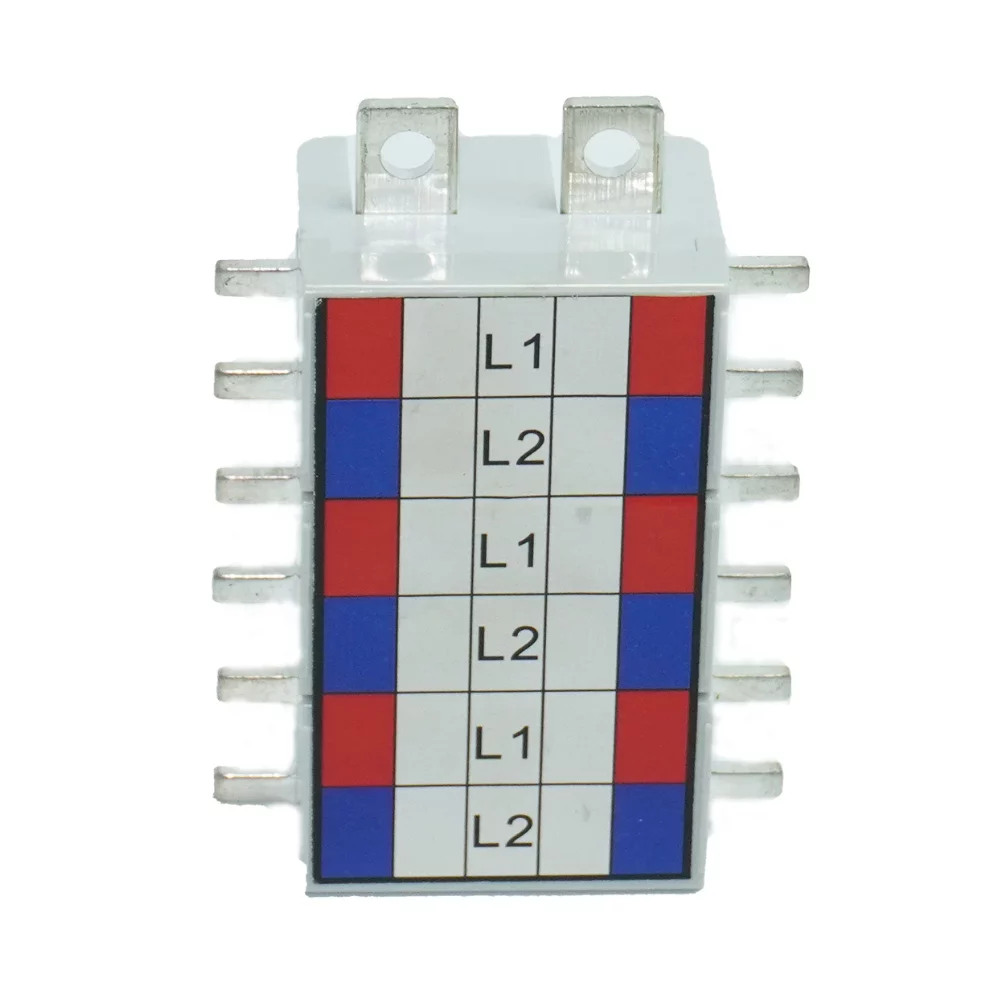

In Electric system subject to the installation requirements stipulated in the standard lEC- 60439,the neutral and phase conductors are often connected to the central bus bars, These require clearly labeling of the conductor or the terminal block to the corresponding circuit. BP1 series MCB pan assembly are fully fulfil the above conditions: By marking each terminal block individually. By the red & blue or other customized color combination housing.

Technical parameters:

  • Rated current:125A/250A
  • Rated voltage:220/240/120V
  • Main switch /Incoming : MCCB or MCB
  • Branch switch/outgoing: Double poles MCB,or RCBO


Type & Specifications

Model Outgoing terminal size
Thickness x Width(mm)		 Incoming terminal size
Thickness x Width(mm)		 Outline Size(mm) Material of case Coating material
BP2-125A/4W 2*5 3*15 54*62*45 PC Tin
BP2-125A/8W 2*5 3*15 90*62*45
BP2-125A/12W 2*5 3*15 126*62*45
BP2-125A/16W 2*5 3*15 162*62*45
BP2-125A/20W 2*5 3*15 198*62*45
BP2-125A/24W 2*5 3*15 234*62*45
BP2-125A/28W 2*5 3*15 270*62*45
BP2-125A/32W 2*5 3*15 306*62*45
BP2-125A/36W 2*5 3*15 342*62*45
BP2-125A/40W 2*5 3*15 378*62*45
BP2-125A/44W 2*5 3*15 414*62*45
BP2-125A/48W 2*5 3*15 450*62*45
BP2-125A/52W 2*5 3*15 486*62*45
BP2-125A/56W 2*5 3*15 522*62*45
BP2-250A/4W 3*5 4*15 54*62*45
BP2-250A/8W 3*5 4*15 90*62*45
BP2-250A/12W 3*5 4*15 126*62*45
BP2-250A/16W 3*5 4*15 162*62*45
BP2-250A/20W 3*5 4*15 198*62*45
BP2-250A/24W 3*5 4*15 234*62*45
BP2-250A/28W 3*5 4*15 270*62*45
BP2-250A/32W 3*5 4*15 306*62*45
BP2-250A/36W 3*5 4*15 342*62*45
BP2-250A/40W 3*5 4*15 378*62*45
BP2-250A/44W 3*5 4*15 414*62*45
BP2-250A/48W 3*5 4*15 450*62*45
BP2-250A/52W 3*5 4*15 486*62*45
BP2-250A/56W 3*5 4*15 522*62*45
